Middle Atlantic DWR-10-22PD 10u Wallmount Cabinet - Plexiglass Front Door

10u 20" Wall Mount Cabinet - Plexiglass Front Door

SKU: DWR-10-22PD | by Middle Atlantic
$1,043.10

10u 20" Wall Mount Cabinet - Plexiglass Front Door

SKU: DWR-10-22PD | by Middle Atlantic
$1,043.10
Shipping Method: LTL Freight Small Package (UPS)
* Estimated Ship Date:

* Some exclusions apply. For an up to date shipping estimate contact sales@serverrack.com

Need help? Talk directly to our experts! 1-800-962-2576

Norton Secured

Product Information

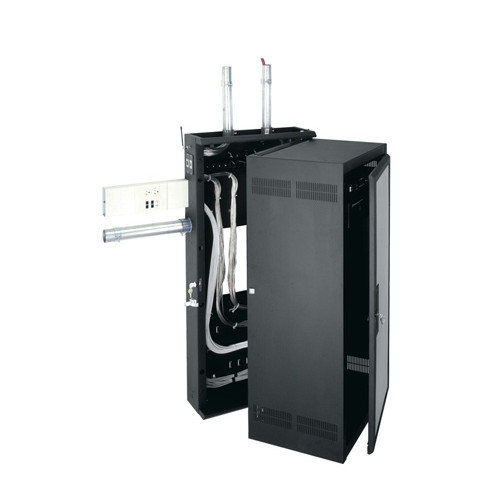

With a secure plexi door, this 19" sectional DWR wall mount cabinethouses 10units. Along with an additional 5" of depth compared to the standard 17" model, as well as its pivoting capabilities, the unit can hold up to 150lbs.



This server rack with plexiglass door is a 19 sectional DWR wall mount cabinet and houses 10 units. Along with an additional 5 of depth compared to the standard 17 model, as well as its pivoting capabilities, the unit can hold up to 150lbs.

Features

  • Dimensions: Outside: 24.5" h x 23.4" w x 22"d; Inside usable: 17.5" h x 19" w x 20"d
  • Reversible locking smoked plexiglass front door standard.
  • Locking reversible center section for a more secure cabinet.
  • NEW Tool-Free Quick Mount pivot system enables one person mounting of the center section to the cabinet backpan on the jobsite.
  • Permanently lubricated bushings, with a proprietary pivot, prevents sagging of the 10u wall mount cabinet interior.
  • Front rail standard, rear rail set is an option. Both fully adjustable.
  • Tuck a power strip into specially made compartment without using valuable U space.
  • Abundant tie points for internal cable management.
  • Smooth-edged laser knockouts provided for cable entry and fan mounting.
  • Solid or vented doors can be substituted for plexi.(Call your account manager at 800-962-2576)
  • Color: Black powder coat
  • PCI Compliant Enclosure

COMPLETE:Equipped with a locking pivoting center section, fully adjustable 11 gauge, 10-32 threaded front rack rail, and a large laser knockout in the rear, the DWR 10-22PD 10u wall mount cabinet comes with a locking smoked plexiglass front door.

AIR FLOW: Two laser knockouts on top and bottom of the cabinet allow for optional 4.5" fan units for increased ventilation.
SOLID: Pivoting design (non-hinged) provides weight capacity up to 150lbs without sagging of the center section when the unit is in the open position, even while fully loaded.
EASY ACCESS: Offering unparalleled access to component rear panels, the cabinet features an advanced cable management system in the center and rear sections. Additionally, the rear section can be easily separated from the center section for pre-mounting on the jobsite.
SECURE: This server rack with plexiglass door comes standard. Solid or vented doors can be ordered as an option. The vented door, with solid welded construction, brings added security and still allows good visibility for the monitoring of equipment operating lights.
